1.Light oil burner.
2.Two stage operation (on/off).
3.High pressure mechanical atomisation of fuel using nozzle.
4.Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
5.Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
6.Single stage flow adjustment.
7.Two stage air flow regulation for first and second stage by means of hydraulic regulator.
8.One flange and one insulating seal for boiler fastening
9.Combustion air intake with air flow adjustment device.
10.Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers
11.Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
12.Monophase electric motor to run fan and pump.
13.Monophase electric motor to run fan and pump.
14.Electrical plant protection rating Ip40.
Products
BT75/100 LRTwo-stage Light Oil Burner
PDF viewProduct Model
BT75LR
| power | Model | Art No. | Max Viscldity | Power supply |
Motor power
kW |
packing Size
L x P x H mm |
Net weight
kg |
| 415～889 | BT75LR | 20120207 | 1.5 | 380V 50Hz | 1.1 | 1050x900x710 | 87.5 |

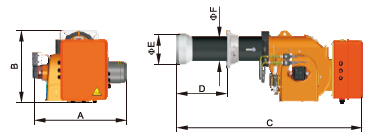

| Model | A | B | C | D | E | F | N | L | I | I1 | M |
| mm | mm | mm | mm | Φmm | Φmm | Φmm | Φmm | mm | mm | M | |
| BT75LR | 610 | 510 | 1250 | 170~400 | 205 | 159 | 215 | 233 | 290 | - | 4-M12 |
BT100LR
| power | Model | Art No. | Max Viscldity | Power supply |
Motor power
kW |
packing Size
L x P x H mm |
Net weight
kg |
| 533～1186 | BT100LR | 20120208 | 1.5 | 380V 50Hz | 1.5 | 1050x900x710 | 92 |
| Model | A | B | C | D | E | F | N | L | I | I1 | M |
| mm | mm | mm | mm | Φmm | Φmm | Φmm | Φmm | mm | mm | M | |
| BT100LR | 625 | 513 | 1270 | 180~400 | 230 | 194 | 240 | 276 | 320 | - | 4-M16 |
